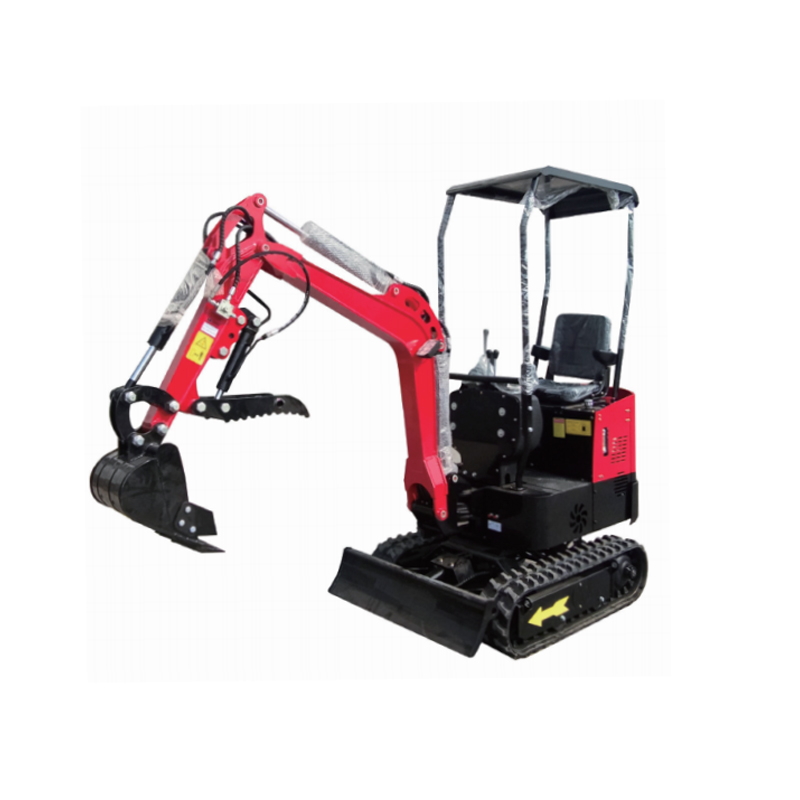

Model:MS10bZ |
|
|
Weight |
1100kg |
|
Digging bucket capacity |
0.025cbm/140kg |
|
Bucket width |
380mm |
|
Engine |
B&S Gasoline engine |
|
Rated power |
8.5kw |
|
Displacement |
0.211 L |
|
Bore stroke |
70x55 |
|
Main pump |
CBK-F6.8 |
|
Displacement |
6.8ml/r |
|
Swing motor |
SJ-TECH (MP-1-160) |
|
Traveling motor |
KERSEN(OMS-2450) |
|
Travel speed |
1.5km/h |
|
Main Demensions |
|
|
Overall dimension( LxWxH) |
2770x900/1100x1490 mm |
|
Wheelbase |
910 mm |
|
Total length of track |
1230mm |
|
Platform ground clearance |
380 mm |
|
Platform back turning radius |
784 mm |
|
Chassis width |
896 mm |
|
Track width |
180 mm |
|
Chassis ground clearance |
132 mm |
|
Track height |
320 mm |
|
Main Demensions |
|
|
Max. Digging depth |
1650 mm |
|
Max. Vertical digging depth |
1375 mm |
|
Max. Digging height |
2610 mm |
|
Max. Dumping height |
1850 mm |
|
Max. Digging radius on ground |
2850 mm |
|
Min. Rotation radius |
1330 mm |
|
Max. Upgrade height of bulldozer blade |
345 mm |
|
Max. Digging depth of bulldozer blade |
255 mm |
|
|
|
