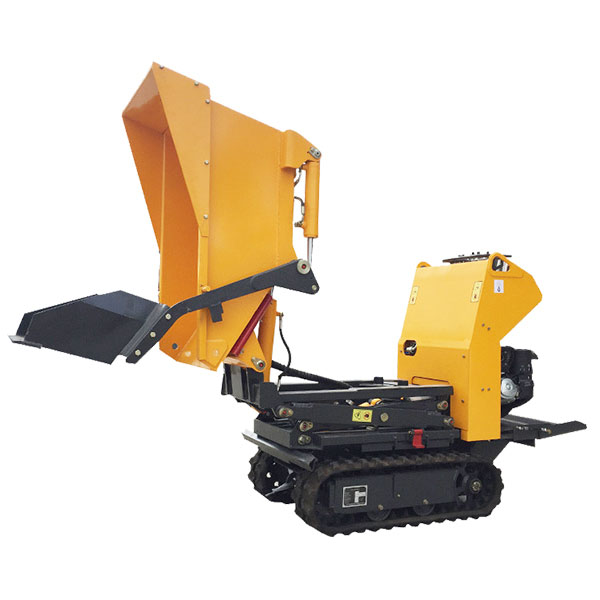

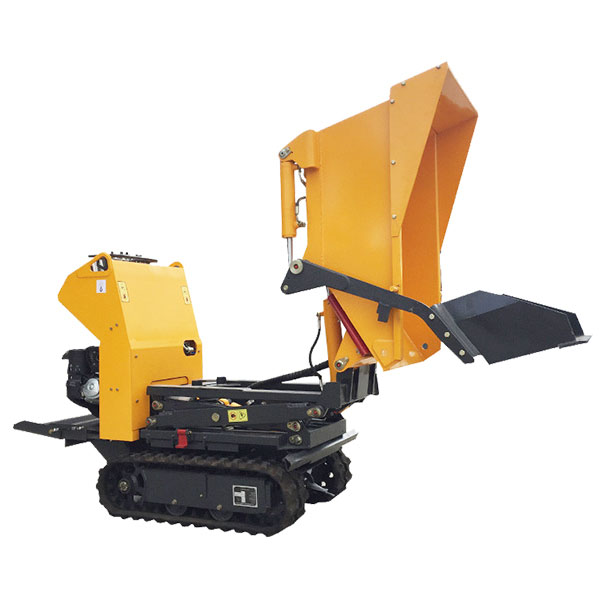

Model:MS-D05 |
|
|
Skip |
|
|
Length |
1150 |
|
Width |
648 |
|
Height |
515 |
|
Capacity |
0.2 m3 |
|
Angle of dumping |
57%/47° |
|
Angle from the ground |
10° |
|
Engine |
|
|
Fuel |
Diesel |
|
Rated power |
6.8Kw |
|
rotating speed |
3000r/min |
|
Cylinder |
1 |
|
Hydraulic system |
|
|
Motor |
Big torque motor |
|
Double pump |
Gear pump |
|
System pressure |
16MPa |
|
System flow |
12ml/min |
|
Hydraulic oil tank capacity |
19.4L |
|
Body of machine |
|
|
Operating weight |
600kg |
|
Load capacity |
500kg |
|
Fuel tank |
5.5L |
|
Speed |
3. 5km/h |
|
|
|
