MS280 Mini Skid Steer Loader

Project Information

Project Description

Description of MS280 Mini Skid Steer Loader

Skid loaders are also known as skid steer loaders, multi-purpose engineering vehicles, and multi-functional engineering machines. It is a wheeled special chassis device that realizes the steering of the vehicle by using the difference in line speed between the two sides. It is mainly used in occasions where the work site is small, the ground is undulating, and the work content changes frequently.

It is suitable for infrastructure construction, industrial applications, terminal loading and unloading, urban streets, houses, barns, barns, airport runways, etc., and can also be used as auxiliary equipment for large-scale construction machinery. There are two types of skid steer loaders: wheeled and tracked.

Main performance parameter of MS280 Mini Skid Steer Loader :

                             Model

HT280

             Engine

Rated power (KW)

American Briggs&Stratton engine 21HP/23HP

Standard speed (rpm)

3600

noise(Db)

≤95

Hydraulic system

System pressure (Mpa)

17

Working time (s)

Raise

Tipping

Low

4.27

1.34

3.31

Performance parameter



Metric

Inch

Load weight

200 Kg

Bucket capacity

0.12 m3

4.26 ft3

Max lifting power

375 Kg

827 Lb

Speed

0-5.5 Km/h

0-3.4 mlie/h

Operating weight

Track

tire

855kg

1884 Lb

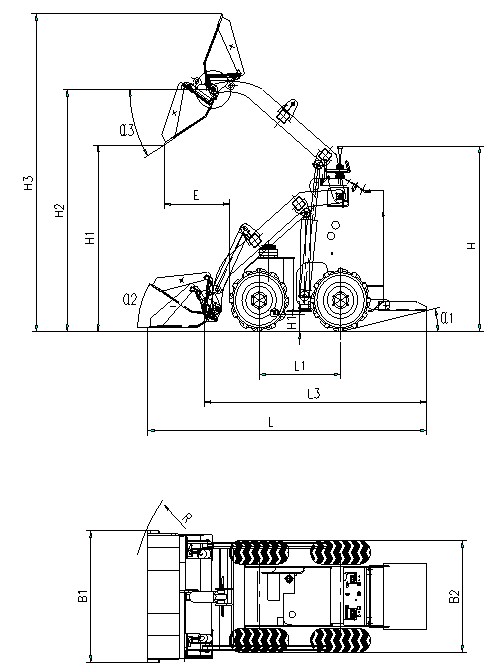

Item

Metric

Inch

Max working height (H3)

2065mm

81.3inch

Max pin height (H2)

1803 mm

71 inch

Max discharge height (H1)

1386 mm

54.6 inch

The highest unload distance(E)

471mm

18.5 inch

Max angle of unloading(α3)

32°

32°

Retracting angle (α2)

33°

33°

Angle of departure (α1)

18°

18°

Total height(H)

1309mm

51.5inch

The height from the ground(H1)

123mm

4.8inch

wheelbase(L1)

690 mm

27.2 inch

No bucket height(L3)

1778 mm

70.0 inch

Total width (B2)

800 mm

31.5 inch

Bucket width(B1)

820 mm

32.3inch

Total length (L)(with bucket )

2210 mm

87inch

Turning radius (R)

1236mm

48.7 inch

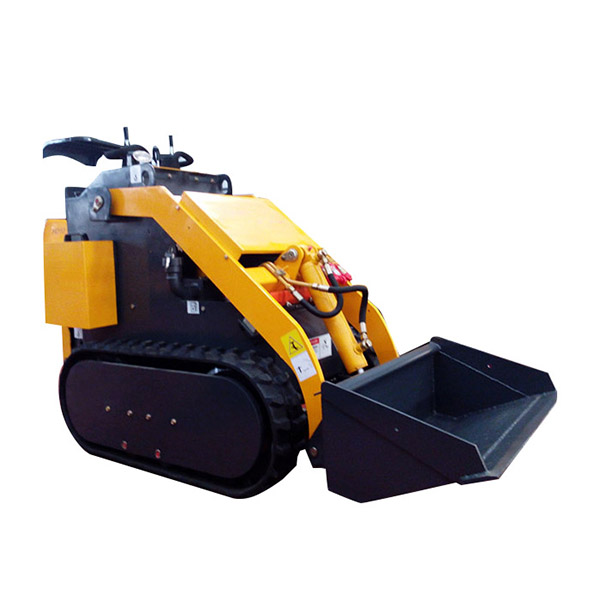

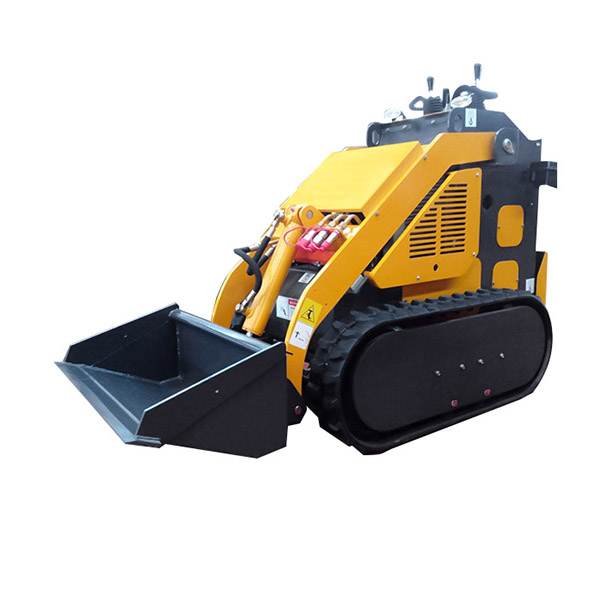

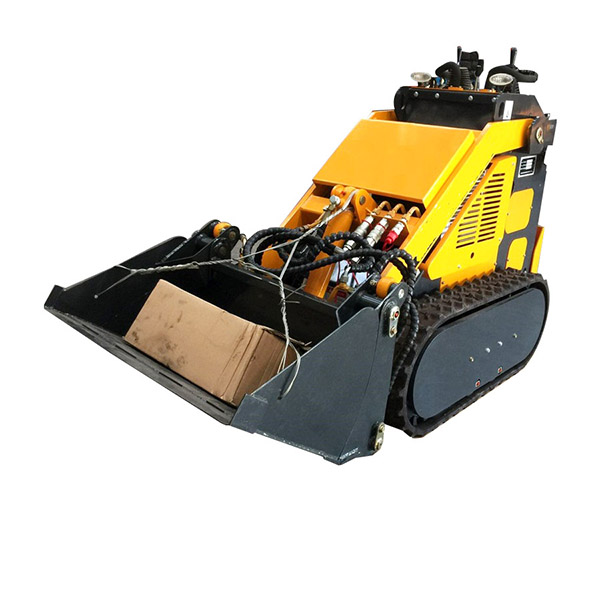

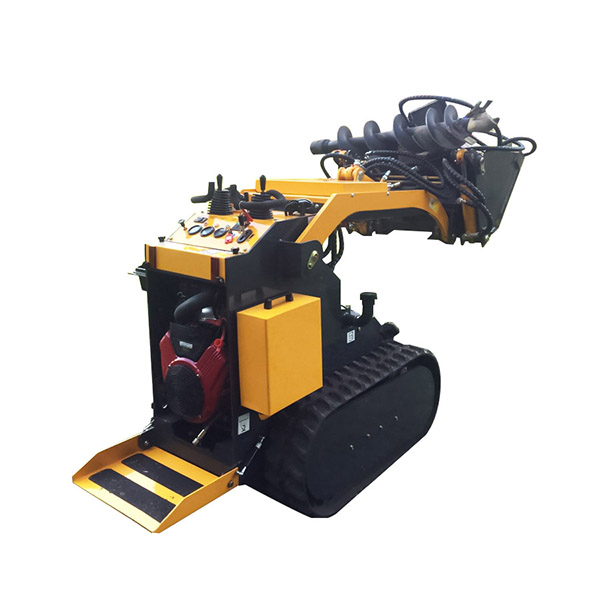

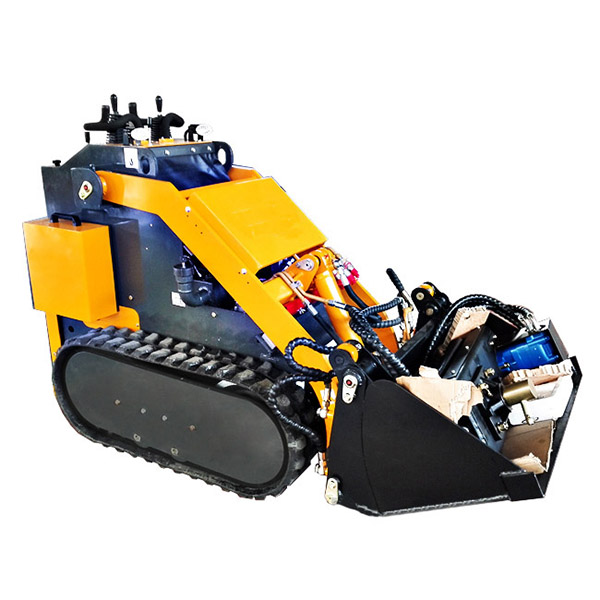

MS-327T  Mini Skid Steer Loader Images
